RO Units: Parts and Their Functions |
|
|
|
Page 3 of 9 |
Pages: 1 . 2 . 3 . 4 . 5 . 6 . 7 . 8 . 9 |
|
|
|
|
|

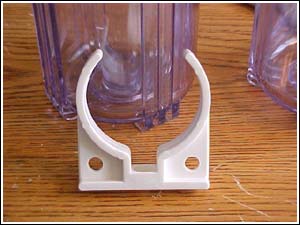

Photo 8: This is a membrane housing clip. Two will be used to hold the membrane housing in position on the top of the filter bracket. The two holes are for hose routing. The clip is mounted with a single screw in the center.

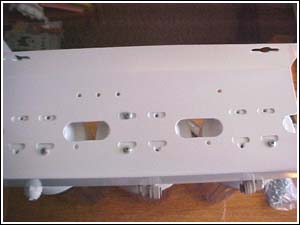

Photo 9: Here's a picture of the membrane housing clips attached to the filter bracket. The filter bracket is designed to be used in a variety of different configurations so not all the holes will be used in this one.

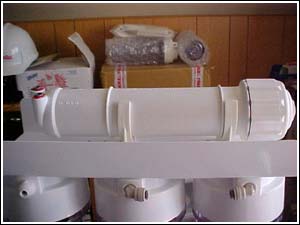

Photo 10: Here's a picture of the Membrane housing attached to the filter bracket with the housing clips.
Photo 11: This is a Reverse Osmosis Membrane. This part does almost all the work of the unit. The prefilters exist to provide filtered water to the membrane.
more...
|
 |
