RO Units: Parts and Their Functions
Page 5 of 9 Pages: 1 . 2 . 3 . 4 . 5 . 6 . 7 . 8 . 9

Photo 16: Here is a close-up of the product end of the housing. Note the outlets for product and reject water. This particular housing is fitted with John Guest ports. This adds to total unit cost, but is worth it when it comes time to maintain the unit or replace the membrane.

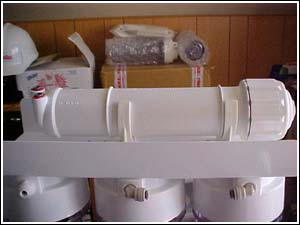

Photo 17: Here, the membrane housing is attached to the filter bracket with the membrane clips.

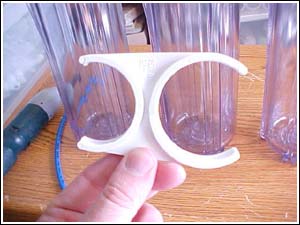

Photo 18: This is a filter clip. It is used for attaching a final stage or "polishing" filter to the membrane housing. Two of them are used.

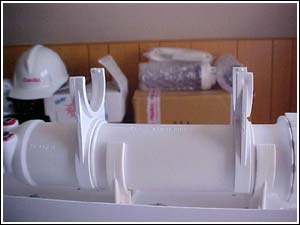

Photo 19: Here, the filter clips are attached to the membrane housing.


more...
